METAL FINISHING & PLATING

METAL FINISHING, PLATING & ENGINEERED COATINGS

The right finish for your part, your process and your application—from cosmetic improvement to precision dimensional restoration.

SURFACE PREPARATION
• Sandblasting

• Abrasive Blasting

• Bead Blasting

• Cleaning & Degreasing

• Deburring

• Coating Removal

• Surface Preparation

POLISHING & STAINLESS STEEL FINISHING
• Mirror Polishing

• Sanitary Polishing

• Satin Finishing

• Buffing

• Stainless Steel Polishing

• Electropolishing

• Passivation

• Specified Surface Roughness

PLATING & ANODIZING
• Hard Chrome Plating

• Electroless Nickel Plating

• High-Phosphorus Electroless Nickel

• Electroless Nickel–PTFE

• Gold Plating

• Copper Plating

• Zinc Plating

• Anodizing

• Hard Anodizing

PVD & LOW-FRICTION COATINGS
• Titanium Nitride (TiN)

• Chromium Nitride (CrN)

• Zirconium Nitride (ZrN)

• Titanium Carbonitride (TiCN)

• Diamond-Like Carbon (DLC)

• Application-Specific Tooling Coatings

THERMAL SPRAY & WEAR PROTECTION
• HVOF Coatings

• Tungsten Carbide

• Tungsten Carbide–Cobalt–Chromium

• Chromium Carbide–Nickel Chromium

• Thermal-Sprayed Metal Buildup

• Ceramic Wear Coatings

• Specified Thermal-Barrier Systems

NONSTICK & RELEASE COATINGS
• PTFE / Teflon Coatings

• PFA Coatings

• FEP Coatings

• Electroless Nickel–PTFE

• Application-Matched Powder Release & Anti-Buildup Treatments

PAINT & PROTECTIVE FINISHES
• Industrial Painting

• Powder Coating

• Epoxy Coatings

• Polyurethane Coatings

• Chemical-Resistant Systems

• Marine Protective Coatings

DIMENSIONAL RESTORATION
• Worn Shaft Repair

• Bearing Journal Restoration

• Seal Surface Repair

• Roller & Idler Restoration

• Sleeve Repair

• Selected Bore Restoration

• Undercut Machining

• Plating & Coating Buildup

PRECISION FINISHING
• Finish Machining

• Cylindrical & Internal Grinding

• Honing

• Lapping

• Superfinishing

• Polishing

• Restoration to Specified Dimensions & Tolerances

PARTS & APPLICATIONS
• Shafts

• Journals

• Sleeves

• Bushings

• Rollers

• Idlers

• Mandrels

• Arbors

• Spindles

• Pump Parts

• Impellers

• Wear Rings

• Valve Stems, Seats & Plugs

• Hydraulic Rods

• Mixer Components

• Filling Nozzles

• Tablet Punches & Dies

• Draw & Redraw Dies

• Molds

• Sealing Jaws

• Cutting Tools

• Precision Fixtures

PROBLEMS WE HELP ADDRESS
• Powder Sticking & Picking

• Product Buildup

• Poor Release

• Abrasion

• Galling

• Sliding Friction

• Corrosion

• Erosion

• Heat Exposure

• Worn Fits

• Surface Roughness

• Difficult Cleaning

• Cosmetic Deterioration

INSPECTION & APPLICATION DEVELOPMENT
• Dimensional Inspection

• Coating Thickness Checks

• Surface Finish Measurement

• Application-Specific Testing

• Sample Trials

• R&D Using Your Product Where Required

NEED A SPECIFIC FINISH?
Send a photo, drawing, specification or worn part. Tell us the material, operating conditions and problem you want to solve.

We’ll help evaluate the appropriate preparation, coating and final finish. Process availability and suitability are confirmed for each job.

One part or a production run—let’s talk.

CALL OR TEXT: 732 984-1500

INDUSTRIES, PARTS & METAL FINISHING

Custom parts, equipment repair, dimensional restoration and specialized finishes for demanding industrial applications.

The following are typical parts and coating options. Final selection depends on the base material, operating conditions, dimensions and customer specifications.

FOOD & BEVERAGE

Parts: Mixer shafts, agitators, impellers, filling nozzles, filling pistons, valve stems, pump shafts, pump housings, sanitary fittings, conveyor rollers, idlers, augers, screws, hoppers, chutes, tanks, heat-exchanger components and packaging tooling.

Finishes:

 Sanitary polishing, electropolishing and passivation for suitable stainless steel surfaces. Application-approved PTFE, PFA and electroless nickel–PTFE systems for selected release applications. Hard chrome or tungsten carbide for suitable wear surfaces.

Problems addressed: Product sticking, powder buildup, difficult cleaning, rough surfaces, corrosion, worn seal journals and damaged bearing fits. Product-contact finishes require application-specific review.

POWER GENERATION

Parts: Steam turbine valve stems, valve seats, valve plugs, turbine sleeves, bearing journals, compressor shafts, rotor components, stator components, pump shafts, impellers, diffusers, wear rings, boiler-feed pump components, bushings and seal surfaces.

Finishes:

HVOF tungsten carbide–cobalt–chromium for selected wear and erosion applications. Chromium carbide–nickel chromium for selected elevated-temperature wear.

Hard chrome, thermal-sprayed metals and precision grinding for suitable restoration work. Engineered ceramic thermal-barrier systems for specified hot-section components.

Problems addressed: Steam erosion, galling, fretting, worn clearances, corrosion, heat exposure and dimensional loss. Coatings do not replace correction of alignment, lubrication or cooling faults.

PHARMACEUTICAL

Parts:

Tablet punches, dies, punch tips, die bores, filling needles, dosing nozzles, dosing screws, feed frames, powder-contact components, mixer shafts, impellers, manifolds, valve bodies, sanitary fittings and fluid-bed equipment components.

Finishes:

Sanitary polishing, electropolishing and passivation. Chromium nitride (CrN), titanium nitride (TiN) and zirconium nitride (ZrN) for selected tooling applications. Specialized release coatings and electroless nickel–PTFE where suitable for the process and product.

Problems addressed: Tablet sticking, picking around lettering and logos, abrasive powder wear, corrosion, product retention and frequent cleaning stops. Trials with the actual formulation help establish release performance.

SEMICONDUCTORS

Parts:

Vacuum chamber components, chamber liners, wafer-handling fixtures, precision brackets, gas manifolds, valve components, aluminum housings, mounting plates, cooling plates, showerhead components and equipment tooling.

Finishes:

Specified anodizing or hard anodizing for suitable aluminum components. Electropolishing and passivation for suitable stainless steel gas and fluid components. Specialized alumina or yttria ceramic coatings for selected chamber applications.

Problems addressed:

Plasma erosion, corrosion, particle generation, surface contamination and wear. Coating chemistry, cleanliness, outgassing and particle performance must match the equipment process.

AEROSPACE

Parts:

Bushings, pins, shafts, bearing journals, actuator rods, hydraulic pistons, housings, brackets, valve components, fuel-system components, turbine blades, vanes, compressor components and manufacturing tooling.

Finishes:

 Drawing-specified anodizing, electroless nickel, hard chrome, tungsten carbide and other thermal-spray systems. Dry-film lubricants for selected sliding interfaces. PVD coatings for suitable tooling.

Engineered thermal-barrier and bond-coat systems for specified turbine applications.

Problems addressed:

Fretting, galling, friction, erosion, corrosion, dimensional wear and heat exposure. Flight-critical work requires the applicable approvals, specifications and inspection requirements.

PLASTICS, PACKAGING & CONTAINER MANUFACTURING

Parts:

Injection molds, mold cores, cavities, ejector pins, extrusion screws, barrels, dies, draw dies, redraw dies, forming punches, can-making tooling, sealing jaws, slitter knives, cutting tools, chill rolls, coating rolls and idler rollers.

Finishes:

Mirror polishing for suitable mold surfaces. Hard chrome and electroless nickel for selected molds, rolls and wear surfaces. CrN, TiN, titanium carbonitride (TiCN) and diamond-like carbon (DLC) for suitable tooling.

Application-matched PTFE or PFA for selected release surfaces.

Problems addressed:

Mold sticking, difficult release, die pickup, galling, abrasive resin wear, roller buildup, surface marking and friction. Redraw tooling requires coating selection matched to the stock material, lubricant and forming load.

CHEMICAL PROCESSING

Parts:

 Pump casings, impellers, shafts, sleeves, valve bodies, plugs, seats, agitators, reactor internals, mixer components, vessels, flanges, heat-exchanger parts, bushings and seals.

Finishes:

High-phosphorus electroless nickel for selected corrosive environments. PTFE, PFA and chemical-resistant lining systems where compatible. Tungsten carbide–cobalt–chromium for selected wear surfaces. Passivation and electropolishing for suitable stainless steel components.

Problems addressed:

 Chemical attack, abrasive slurries, erosion, sticking, seal wear and product retention. Chemical concentration, temperature and cleaning exposure determine suitability.

MARINE & SHIPYARDS

Parts: Propeller shafts, shaft sleeves, rudder components, pump shafts, impellers, valve components, winch drums, rollers, hydraulic rods, deck hardware, brackets and bearing housings.

Finishes:

Abrasive blasting and specified marine epoxy or polyurethane systems. Hard chrome, nickel plating and thermal-spray restoration for suitable components. Tungsten carbide for selected seal and wear areas. Stainless steel polishing and passivation.

Problems addressed:

 Saltwater corrosion, worn journals, sliding wear, damaged sealing surfaces and coating deterioration. Immersion service and dissimilar-metal contact require specific coating-system selection.

WAREHOUSING & LOGISTICS

Parts:

 Conveyor rollers, idlers, drive shafts, sprockets, pulleys, sheaves, guide rails, bushings, guards, equipment frames, platforms, brackets and material-handling components.

Finishes:

Powder coating, industrial painting, zinc plating and abrasive blasting for suitable structures and hardware. Hard chrome or thermal-sprayed buildup for selected worn rollers and shafts. Low-friction coatings for compatible sliding components.

Problems addressed:

Roller wear, seized components, damaged bearing seats, rust, friction, product marking and worn guide surfaces.

AUTOMOTIVE & TRANSPORTATION

Parts:

Pins, bushings, shafts, piston rods, hydraulic components, fuel-injection components, valve-train parts, gears, housings, stamping dies, draw tooling, molds, fixtures and production-line rollers.

Finishes: DLC and other specified low-friction coatings for suitable precision components. TiN, TiCN and CrN for selected cutting and forming tools. Hard chrome, electroless nickel, anodizing, powder coating and polishing for compatible parts.

Problems addressed:

Sliding friction, scuffing, galling, abrasive wear, corrosion, forming pickup and dimensional loss.

WATER & WASTEWATER

Parts:

Pump impellers, shafts, sleeves, wear rings, casings, diffusers, valve stems, valve seats, mixer shafts, aerator components, screens, sludge-handling screws and progressive-cavity pump rotors.

Finishes:

Application-matched epoxy linings and protective painting. Hard chrome, tungsten carbide and other selected wear coatings for compatible components. Stainless steel passivation, polishing and abrasive-blast preparation.

Problems addressed:

 Slurry abrasion, corrosion, erosion, worn clearances and seal-surface damage. Progressive-cavity pump stators are commonly elastomeric and may require relining or replacement rather than metal plating. Cavitation damage also requires investigation of pump operating conditions.

MANUFACTURING & METALWORKING

Parts:

Spindles, mandrels, arbors, journals, gears, shafts, sleeves, bearing housings, fixtures, jigs, stamping punches, draw and redraw dies, cutting tools, machine ways, feed rolls and idlers.

Finishes: Hard chrome, electroless nickel, thermal-sprayed metal buildup and tungsten carbide for selected repair and wear applications. TiN, TiCN, CrN and DLC for suitable tooling. Precision grinding, honing, lapping, polishing, anodizing and powder coating.

Problems addressed:

Worn fits, undersized parts, galling, tool pickup, friction, rough finishes and loss of dimensional accuracy.

FUEL CELLS, HYDROGEN & ELECTRICAL EQUIPMENT

Parts:

Fuel-cell bipolar plates, flow-field plates, current collectors, end plates, compression hardware, hydrogen valve components, compressor parts, cooling components, busbars, electrical contacts and motor housings.

Finishes: Application-specific conductive carbon or nitride thin films for selected metallic bipolar plates. Specified gold plating for selected contacts or specialty components. Nickel plating for compatible electrical hardware.

Anodizing for suitable aluminum structures where insulation is intended.

Problems addressed:

Corrosion, electrical contact resistance, sliding wear and environmental exposure. Conductive coatings and insulating coatings serve different purposes; fuel-cell and hydrogen components require design-specific qualification. Motor stator windings require electrical insulation systems rather than general metal coatings.

PRECISION RESTORATION & INSPECTION

Suitable worn surfaces can be undercut, built up and finish-machined or ground back to specified dimensions. Inspection requirements may include coating thickness, surface roughness, bore size, roundness, concentricity and runout.

Cracked or broken parts require structural evaluation before surface restoration. Coatings are selected to solve a defined problem.

SEND A PHOTO, DRAWING, SAMPLE OR WORN PART.
Tell us what sticks, wears, overheats, corrodes or falls out of tolerance.

CALL OR TEXT: 732 984-1500
SKYLARMFG.COM

ENGINEERED COATINGS,
DIMENSIONAL RESTORATION & PRECISION FINISHING

RESTORE DIMENSIONS. IMPROVE RELEASE. PROTECT PERFORMANCE.

The right surface treatment starts with your material, operating conditions and the problem you need to solve.

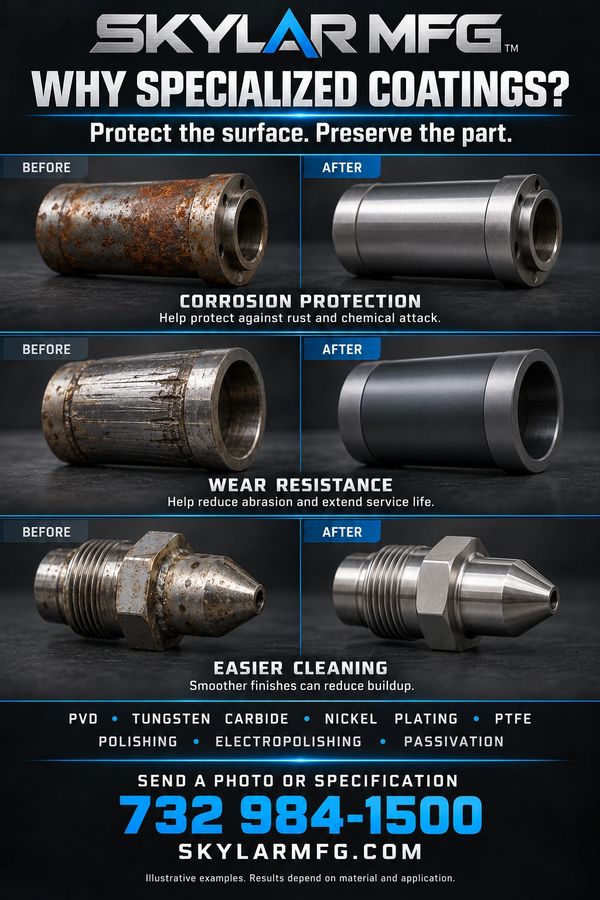

WORN SHAFTS, JOURNALS & BEARING FITS

Restoration options:

• Hard chrome plating — controlled buildup with a hard, grindable surface for suitable shafts, journals, plungers and hydraulic components.

• Electroless nickel plating — uniform deposition on compatible components and complex geometries; suitable for selected dimensional corrections.

• Thermal-sprayed steel or stainless steel — restorative buildup for suitable worn journals, rollers, sleeves and bearing areas.

• HVOF tungsten carbide — hard, wear-resistant protection for suitable seal journals, sleeves and demanding contact surfaces.

Typical parts:
Shafts, bearing seats, seal journals, sleeves, rollers, idlers, plungers and selected housing bores.

Restoration sequence:
Inspect the component, assess damage, undercut where required, prepare the substrate, apply the engineered buildup and finish-machine or grind to specified dimensions.

Substantial dimensional loss may require a restorative metal layer beneath the final wear-resistant coating.

ABRASION, EROSION & REPEATED WEAR

Coating options:

• Tungsten carbide–cobalt (WC-Co) — hard protection for selected abrasion and wear applications.

• Tungsten carbide–cobalt–chromium (WC-CoCr) — wear protection with improved corrosion resistance compared with some cobalt-only systems.

• Chromium carbide–nickel chromium (Cr3C2-NiCr) — selected elevated-temperature wear and erosion applications.

• Chromium oxide ceramic — selected seal, roller and wear surfaces.

• PVD titanium nitride (TiN) — thin, hard protection for compatible tooling.

• PVD chromium nitride (CrN) — selected wear, corrosion and release applications.

Typical parts:
Pump sleeves, seal surfaces, impellers, mixer components, rollers, cutting tools, punches and dies.

Performance depends on more than hardness. Impact, operating temperature, lubrication, coating adhesion and mating surfaces also influence service life.

POWDER STICKING, PICKING & TABLET RELEASE

Coating options:

• Chromium nitride (CrN) — selected tablet-tooling applications requiring release, wear and corrosion performance.

• Zirconium nitride (ZrN) — selected anti-stick and corrosion-resistant tooling applications.

• Titanium nitride (TiN) — wear protection for abrasive formulations; release performance requires application-specific testing.

• Specialized titanium nitride or chromium nitride systems — engineered for compression tooling and formulation-specific release.

• Electroless nickel–PTFE — a nickel matrix containing PTFE for selected lubricity and release applications.

Typical parts:
Tablet punches, dies, feed components and compatible powder-contact surfaces.

Picking around lettering and engraving can involve tooling geometry, surface condition, moisture and formulation. Trials using your actual product help identify the appropriate surface preparation and coating combination.

NONSTICK PROCESSING & REDUCED BUILDUP

Coating options:

• PTFE coatings — selected nonstick and low-friction processing applications.

• PFA coatings — selected release and chemical-barrier applications.

• FEP coatings — selected release applications within the coating system’s operating limits.

• Electroless nickel–PTFE — selected components requiring a metallic coating with lubricity.

Typical parts:
Chutes, hoppers, guides, sealing jaws, rollers and compatible product-contact components.

Selection considers abrasion, temperature, cleaning chemicals, coating thickness, substrate condition and product-contact requirements. Improved release can reduce buildup and cleaning interruptions when confirmed through testing.

CORROSION PROTECTION & LONGER STORAGE

Treatment options:

• High-phosphorus electroless nickel — selected applications requiring corrosion-resistant metallic protection.

• Anodizing — protective surface treatment for compatible aluminum alloys.

• Hard anodizing — selected aluminum components requiring additional wear resistance.

• Stainless steel passivation — removes free-iron contamination and supports the stainless surface’s corrosion resistance.

• Epoxy or polyurethane systems — protective finishes for suitable frames, housings and exterior equipment surfaces.

• Powder coating — protective and cosmetic finishing for suitable noncritical surfaces.

Longer storage protection also depends on cleaning, drying, handling and packaging. Coating selection must account for humidity, chemical exposure and storage conditions.

SANITARY SURFACES & EASIER CLEANING

Finishing options:

• Mechanical sanitary polishing — controlled finishing to specified surface roughness and acceptance requirements.

• Electropolishing — controlled material removal that reduces microscopic surface peaks on suitable alloys.

• Passivation — supports corrosion resistance on properly prepared stainless steel.

• Mirror polishing — highly reflective finishing where appropriate for the application.

Typical parts:
Filling nozzles, sanitary fittings, manifolds, mixer components, tanks and product-contact surfaces.

Sanitary suitability requires more than shine. Surface roughness, pits, crevices, weld condition and cleanability must satisfy the application.

Finishing does not automatically eliminate every microscopic defect.

COSMETIC FINISHES & SPECIALTY PLATING

Finishing options:

• Decorative anodizing — specified color and appearance on suitable aluminum.

• Powder coating and industrial painting — selected colors, textures and protective finishes.

• Mirror or satin polishing — controlled appearance and surface consistency.

• Gold plating — specified electrical contacts, connectors and selected decorative components.

• Nickel plating — selected functional and cosmetic applications.

Finish selection considers appearance, exposure, handling, coating thickness and dimensional requirements.

PRECISION AFTER COATING

Coating thickness belongs in the dimensional plan.

We account for buildup before processing, protect critical areas through masking and finish suitable surfaces by machining, cylindrical grinding, internal grinding, honing, lapping or polishing.

Final requirements may include:

• Diameter and bore size
• Bearing and seal fits
• Roundness and cylindricity
• Concentricity and runout
• Surface roughness
• Remaining coating thickness

The target is the specified nominal dimension within the agreed tolerance. Required fits and surface finishes are established before processing.

INSPECTION, TESTING & APPLICATION DEVELOPMENT

Every coated part goes through our inspection and testing process, with checks selected for the application.

Depending on the specification, evaluation may include dimensions, coating thickness, surface roughness, visual condition and coating-property testing. Certain tests require representative coupons or sample components rather than destructive testing of finished parts.

Where required, R&D trials use your actual product to evaluate sticking, release, buildup, cleaning and operating performance.

Higher machine speeds, improved product consistency, longer service life and reduced downtime are goals established through application-specific testing.

BROKEN PARTS & STRUCTURAL EVALUATION

Plating and coatings restore suitable surfaces. Cracked, fractured or severely damaged components may require welding, engineering review or replacement before coating. Surface buildup alone does not restore structural integrity.

SEND YOUR PART, PRINT OR PROBLEM.

Tell us the material, critical dimensions, operating temperature, cleaning chemicals and failure history. We’ll help evaluate a practical restoration, coating and precision finishing approach.
